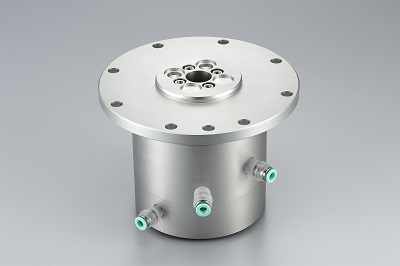

Applicable industry: semiconductor (for cooling table)
Rotary Joint
ＭS series (2 ports)
Applications
-
Cooling water supply to rotary table
Features
-
A hollow hole can be drilled in the center of the rotary shaft of a rotary joint
Specifications
| Max. speed | 200 min-1 / rpm |
| Pressure | 0.5 MPa / 72.5 psi / 5 bar |
| Fluid | Pure water |
| Material |
SUS and more |
The above specifications are for reference only.
Actual specifications may vary depending on the model.
ＭS series (3 ports)
Applications
-
Air supply for wafer pressurization
-
Vacuum chuck for wafer holding
-
Air supply for vacuum break
-
Cooling water supply to rotary table
-
Supply of pure water
Features
-
Simultaneous supply of multiple fluids(pure water, vacuum and air) to the rotary table
-
Capable of supporting up to 5 ports
Specifications
| Max. speed | 850 min-1 / rpm |
| Pressure | -0.1～0.6 MPa / -14.5～87 psi / -1～6 bar |
| Fluid | Vacuum / Air / Pure water |
| Material |
SUS and more |
The above specifications are for reference only.
Actual specifications may vary depending on the model.
