For hot water and heat transfer oil (Applicable industry: General machinery) LCH type
Another customer of the business

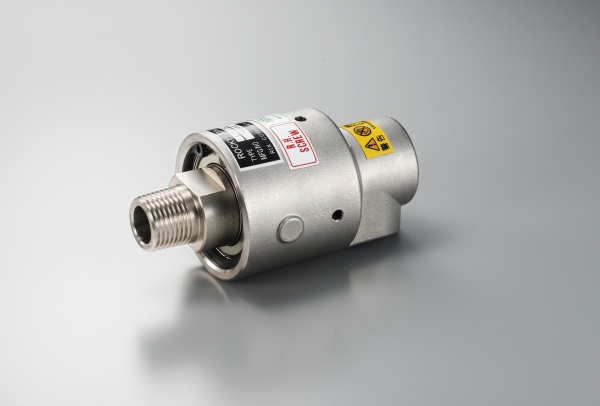

Rotary Joint
Features
-
-
Heat tolerance:
Applicable for maximum temperature 200 ℃ (392 °F) because packing and grease have heat tolerance.
-
Easy maintenance:
Heat tolerance bearing is enclosed grease, and no regular grease supply is needed. Seal is easy to exchange.
Fluid
| Fluid | Water | Saturated vapour | Heat transfer oil |
| ✔ | * | ✔ |
*Please contact us if you need duoflow (rotating pipe).
Operating specification
| Pressure | Max. speed | Temp. | |
| LCH | Max. 1.5 MPa | 150 min-1 | Max. 200 ℃ |
| Max. 218 psi | 150 rpm | Max. 392 °F | |
| Max. 15 bar |
Inner pipe type
| Inner pipe type | Monoflow | Duoflow (Fixed pipe) | Duoflow (Rotating pipe) |
| LCHT | LCHP | LCHD |
Size & connection part shape
- Standard size 3/4 ~ 1 1/2
*Contact us if the size is over standard type.
- Connection part shape: Screw (RH or LH) or Flange
| Direction | Horizontal | Vertical (Rotating part is upper side) | Vertical (Rotating part is lower side) |
| ✔ | * | * |
*Please contact us for more details.
Installation dimensions
*Please download catalog to check details of dimensions.
