【Food Industry】 Rotary Joint for Plastic Bottle Blow Molding and Filling Machines

Another customer of the business

Rotary Joint

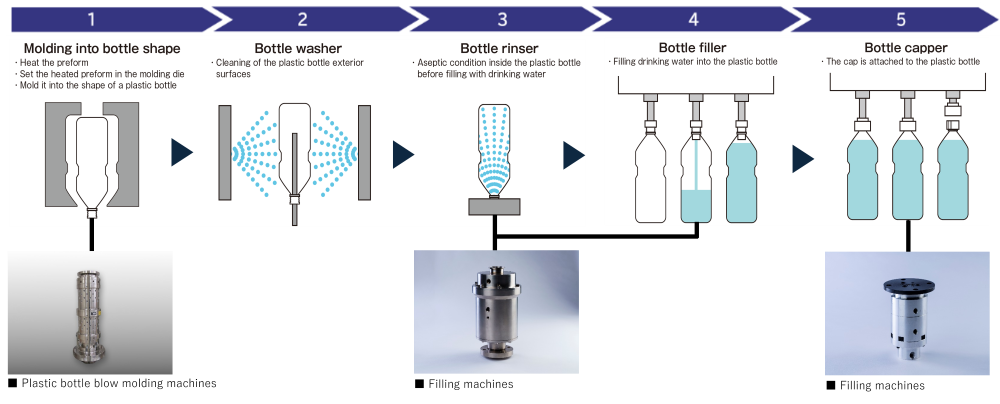

Beverage Manufacturing Process

Multi-port design enables the supply of two or more fluids.
Designed and manufactured to meet the quality requirements of the food industry.
Extensive track record in applications such as beverage filling machines and plastic bottle blow molding machines.
Manufactured at our domestic factory, enabling careful support such as overhauls and maintenance.

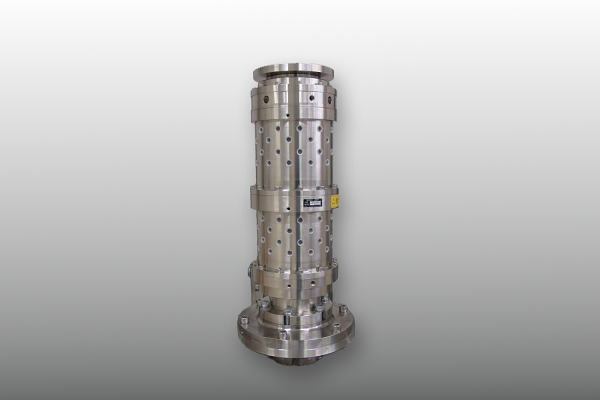

Application: Temperature control of molding dies

●Fluid: Cold and hot water

●Rotation speed: 40 min^-1 / 40 rpm

●Pressure: 0.6 MPa / 87 psi / 6 bar

●Temperature: 75 ℃ / 167 ℉

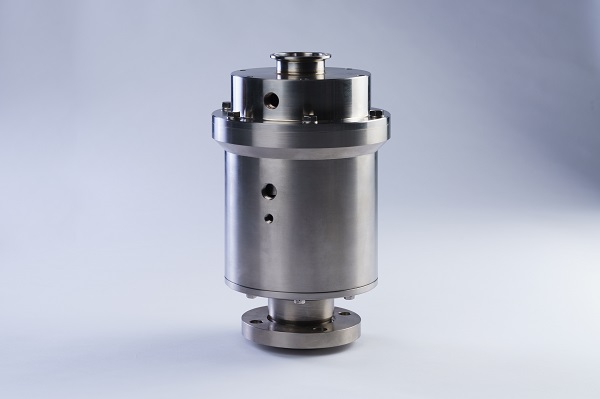

Application: Bottle interior cleaning (for aseptic filling)

●Fluid: Aseptic air / steam / cleaning liquid

●Rotation speed: 10 min^-1 / 10 rpm

●Pressure: 0.2 MPa / 29 psi / 2 bar (cleaning liquid)

●Temperature: 80 ℃ / 176 ℉

Application: Supply of drinking water to bottles (for aseptic filling)

●Fluid: Drinking water (carbonated water compatible)

●Rotation speed: 10 min^-1 / 10 rpm

●Pressure: 0.1 MPa / 14.5 psi / 1 bar

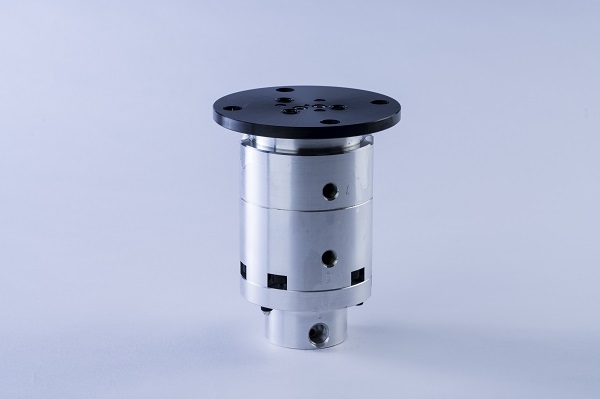

Application: Bottle capping

●Fluid: Oil

●Rotation speed: 500 min^-1 / 500 rpm

●Pressure: 5 MPa / 725 psi / 50 bar
