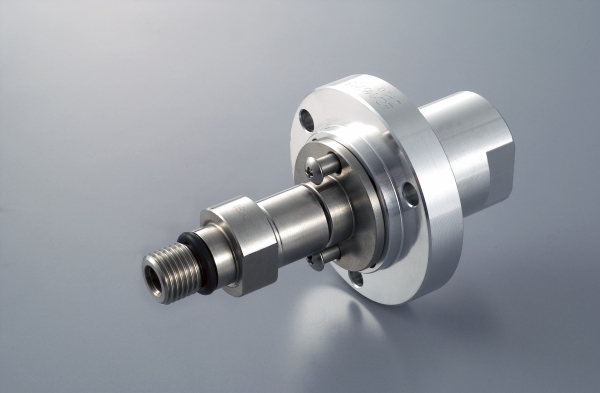

Applicable industry: Machine tools (Bearing-less type) ESX20M-S&E series

Applicable industry: Machine tools (Bearing-less type) ESX20M-S&E series

Another customer of the business

Rotary Joint

Features

  • 4.5 mm stroke (Applicable for built-in spindle)
  • Applicable for hollow motor

Fluid

Fluid Coolant Oil mist Dry air
Pressure (MPa) 0.5 ~ 14 0.2 ~ 1 N/A
Pressure (psi) 72.5 ~ 2,030 29 ~ 145
Pressure (bar) 5 ~ 140 2 ~ 10

Operating specification

Specification Flow rate (Coolant) Max. speed Max. temp Stroke (Axial movement)
Number Below 20 L/min Max. 40,000 min-1 Max. 60 ℃ Max. 4.5 mm
Below 5.28 gal/min Max. 40,000 rpm Max. 140 °F

Installation direction

Direction Horizontal Vertical (Rotating part is upper side) Vertical (Rotating part is lower side)
✔ ✔ ✔

Installation specification

Specification Rotation without fluid Min flow rate to operate seal
(In case fluid is coolant)
*Thrust loading to spindle side
✔ Over 10 L/min 873 N
Over 2.64 gal/min


Note)

*Thrust loading to spindle side

01.Thrust loading is directly proportional to fluid pressure.

02.In case fluid pressure is 7 MPa (1,015 psi, 70 bar).

Outline drawings and Installation dimensions


*Please download catalog to check details of dimensions.
