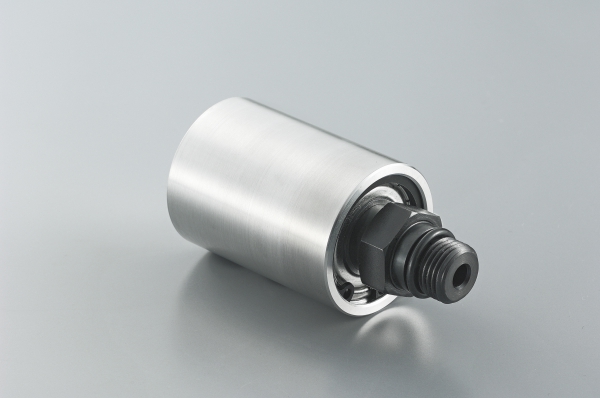

For turning machine chuck (Built-in bearing type) LA1P series (Single port)
Rotary Joint
Fluid
| Fluid | Coolant | Oil mist | Dry air |
| Pressure (MPa) | 7 | 1 | -0.1 |
| Pressure (psi) | 1,015 | 145 | -14.5 |
| Pressure (bar) | 70 | 10 | -1 |
Operating specification
| Specification | Flow rate (Coolant) | Max. speed | Max. temp |
| Number | Below 20 L/min | Max. 6,000 min-1 | Max. 60 ℃ |
| Below 5.28 gal/min | Max. 6,000 rpm | Max. 140 °F |
Installation direction
| Direction | Horizontal | Vertical (Rotating part is upper side) | Vertical (Rotating part is lower side) |
| ✔ | ✔ | ✔ |
*Applicable for only dry air
Installation specification
| Specification | Rotation without fluid |
| ✔ |
Outline drawings and Installation dimensions
*Please download catalog to check details of dimensions.
Catalog download
-
ROTALY JOINTS for Machine Tools
Catalog
Rotary Joint
