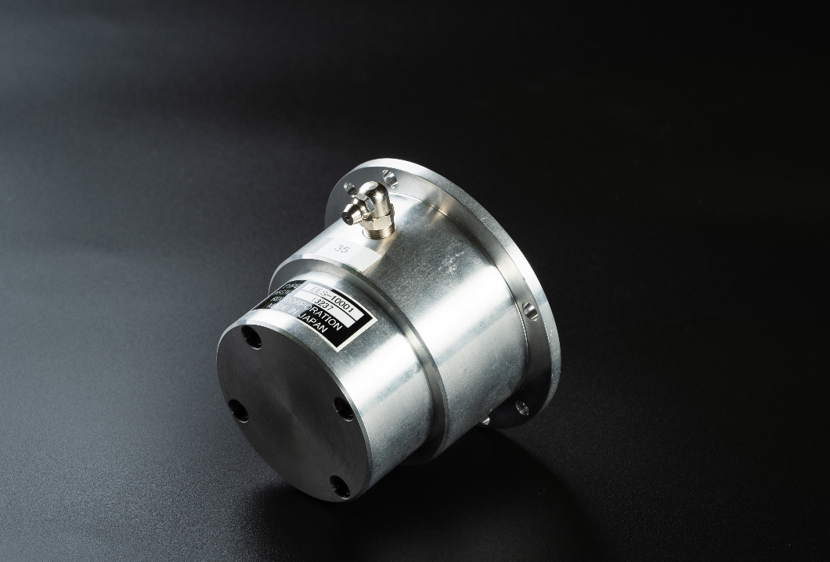

【Machine Tools】 EES Series Rotary Joint for Spindle Shaft Cooling
Rotary Joint
What is a Rotary Joint for Spindle Shaft Cooling in Machine Tools?

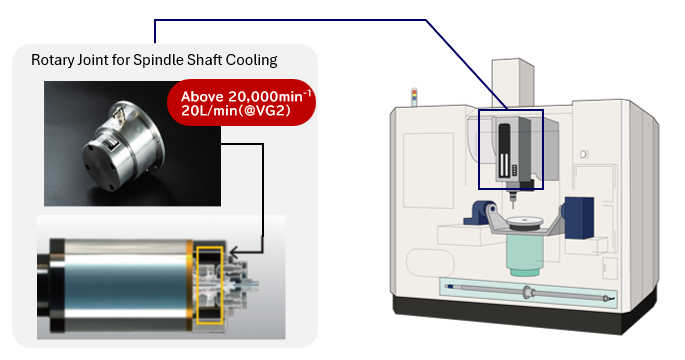

This rotary joint is used to supply fluid to the inside of a built-in motor (machining spindle) of a machine tool.
In general, only the stationary housing side is cooled.
However, by using a rotary joint for spindle shaft cooling,
fluid can be supplied to the rotating spindle shaft itself, enabling internal cooling of the spindle shaft.
|

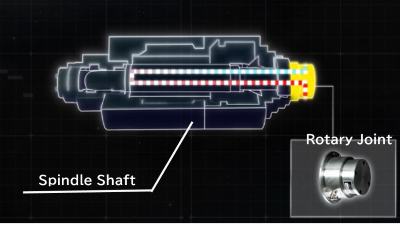

■Spindle shaft cooling (rotating part)  |

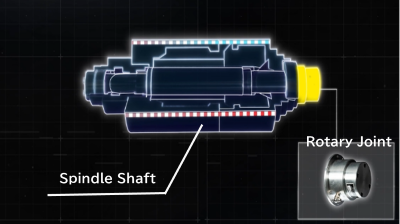

■Housing cooling (stationary part)  |
Advantages of Spindle Shaft Cooling
By cooling the heat generated inside the spindle,
spindle deformation and thermal effects on the machine body can be suppressed, providing the following benefits.
- Enables longer continuous machining
- Improved accuracy
- Reduced warm-up times
