Applicable industry: semiconductor (for CMP equipment)
Rotary Joint

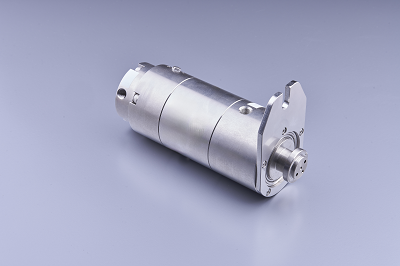

EMF series (3 ports)
Applications
-
Air supply for pressurization in air bag
-
Air supply for depressurization in air bag
-
Mainly for CMP equipment
Features
-
Multi-port type suitable for simultaneous supply of multiple fluids (3 ports)
-
Rotation without fluid is possible
-
Mechanical seal structure
Specifications
| Max. speed | 150 min-1 / rpm |
| Pressure | -0.1～0.1 MPa / -14.5～14.5 psi / -1～1 bar |
| Fluid | Vacuum / Air |
| Material |
SUS and more |
The above specifications are for reference only.
Actual specifications may vary depending on the model.
MF series (3 ports)
Applications
-
Air supply for pressurization in air bag
-
Air supply for depressurization in air bag
-
Mainly for CMP equipment
Features
-
Multi-port type suitable for simultaneous supply of multiple fluids (3 ports)
-
Rotation without fluid is possible
-
Packing seal structure
Specifications
| Max. speed | 50 min-1 / rpm |
| Pressure | -0.1～0.3 MPa / -14.5～43.5 psi / -1～3 bar |
| Fluid | Vacuum / Air |
| Material |
SUS and more |
The above specifications are for reference only.
Actual specifications may vary depending on the model.
ＭＦES series (multi-port)
Applications
-
Air supply for wafer pressurization
-
Vacuum chuck for wafer holding
-
Air supply for vacuum break
-
Cooling water supply to rotary table
-
Supply of pure water / chemicals / slurry
Features
-
Multi-port type suitable for simultaneous supply of multiple fluids
-
Reduces elution of metal ions into the fluid with non-metallic internal wetted parts
-
Internal wetted parts are made of chemically resistant materials
-
Adoption of wear resistance mechanical seal
-
Capable of supporting up to 8 ports
Specifications
| Max. speed | 300 min-1 / rpm |
| Pressure | -0.1～1 MPa / -14.5～145 psi / -1～10 bar |
| Fluid | Air / Vacuum / Pure water / Chemical / Slurry and more |
| Material |
PTFE / SUS |
The above specifications are for reference only.
Actual specifications may vary depending on the model.
