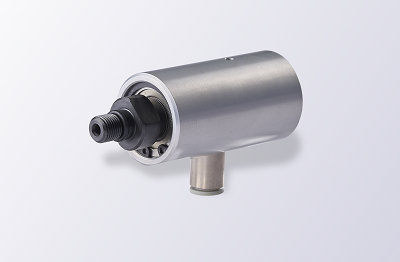

【Machine Tools】 L66M Series Rotary Joint for Coolant-Through
Rotary Joint
Features
- Mounting screw: M10
- Compatible with various spindles
- Compact, space-saving design suitable for integration into spindles
- Highly durable mechanical seal made of special ceramic
Fluid
| Coolant | Oil mist | Dry air | |
| Pressure (MPa) |
11 |
1 | N/A |
| Pressure (psi) |
1,595 |
145 | |
| Pressure (bar) |
110 |
10 |
Operating specification
| Specification | Flow rate (Coolant) | Max. speed | Max. temp |
| Below 20 L/min | Max. 15,000 min-1 | Max. 60 ℃ | |
| Below 5.28 gal/min | Max. 15,000 rpm | Max. 140 °F |
Installation direction
| Direction | Horizontal | Vertical (Rotating part is upper side) | Vertical (Rotating part is lower side) |
| ✔ | ✔ | ✔ |
Installation specification
| Specification | Rotation without fluid |
| ✔ |
Notes
1. Rotation without fluid: Rotation of the rotary joint without fluid supply. (dry running)
Outline drawings and Installation dimensions
*Please download catalog to check details of dimensions.
Catalog download
-
ROTALY JOINTS for Machine Tools
Catalog
Rotary Joint
