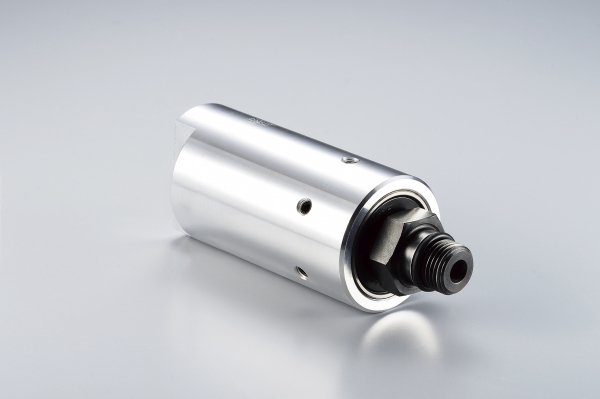

Applicable industry: Machine tools (Built-in bearing type) LX84M, 86M series

2 fluid type (Coolant and oil mist).
This rotary joint achieves longer lifetime because double drain structure prevents entering drain to bearing.

Applicable industry: Machine tools (Built-in bearing type) LX84V, 86V series

3 fluid type (Coolant, oil mist and dry air).
This rotary joint achieves longer lifetime because double drain structure prevents entering drain to bearing.

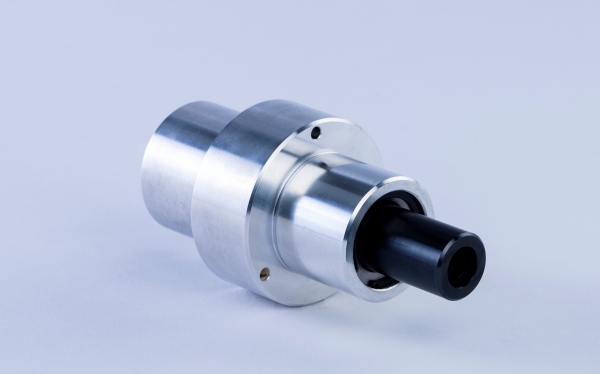

Applicable industry: Machine tools (Built-in bearing type) LX88 series (for hexagonal shaft)

3 fluid type (Coolant, oil mist and dry air).
Bore-mounted type.
Applicable for high pressure and high speed.

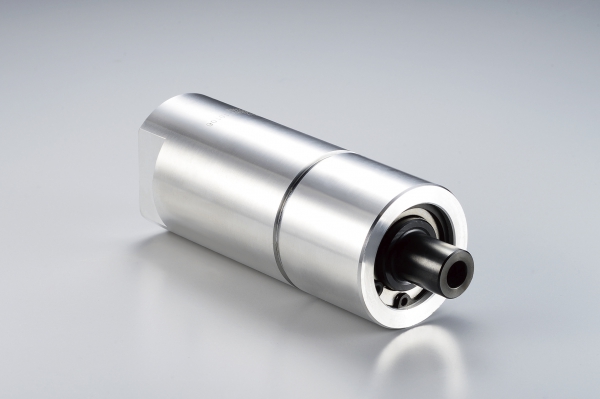

Applicable industry: Machine tools (Built-in bearing type) LX88 series (for octagonal shaft)

3 fluid type (Coolant, oil mist and dry air).
Bore-mounted type.
Applicable for high pressure and high speed.

【Machine Tools】 L66M Series Rotary Joint for Coolant-Through

・Built-in bearing type
・Compact design compatible with coolant and oil mist

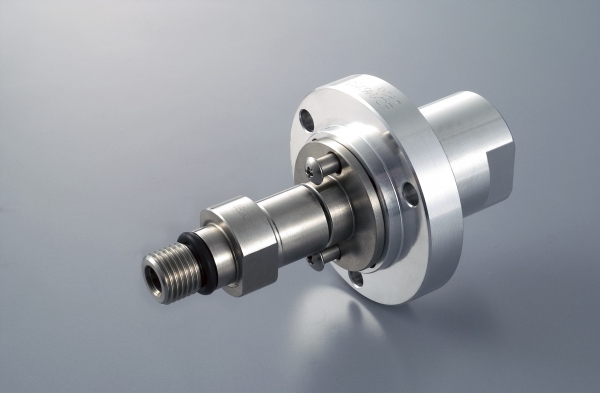

Applicable industry: Machine tools (Bearing-less type) ESX20M-S&E series

2 fluid type (Coolant and oil mist).
Applicable for hollow motor and built-in spindle.

【Machine Tools】 ESX20V-E Series Rotary Joint for Coolant-Through (Hollow Motor Type)

・Designed for hollow motor spindles
・Three fluid type
(Coolant, oil mist, and dry air)

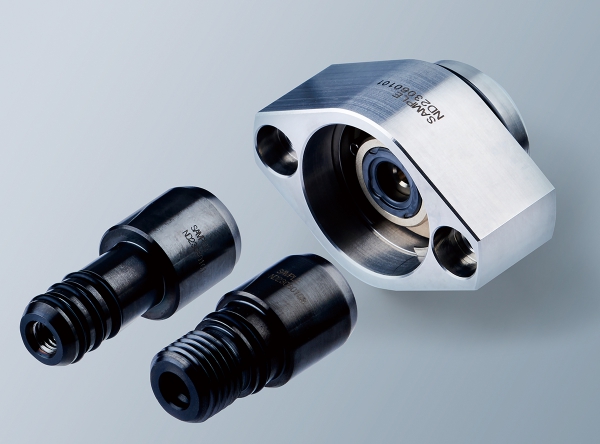

【Machine Tools】ESX20M-13 Series Rotary Joint for Coolant-Through

・Two fluid type
(Coolant and oil mist)
・Special rotor-seal fastening design
・Mainly used for built-in spindles

【Machine Tools】 EES Series Rotary Joint for Spindle Shaft Cooling

・Supplies cooling fluid inside the spindle shaft
・Helps reduce thermal impact on the spindle

Applicable industry: Machine tools (Bearing-less type) ESX20M-L series

2 fluid type (Coolant and oil mist).
Maximum stroke (axial movement) is 8 mm.
Seal type is "Heat shrink fit" that prevent seal separation by chemical influence of coolant.

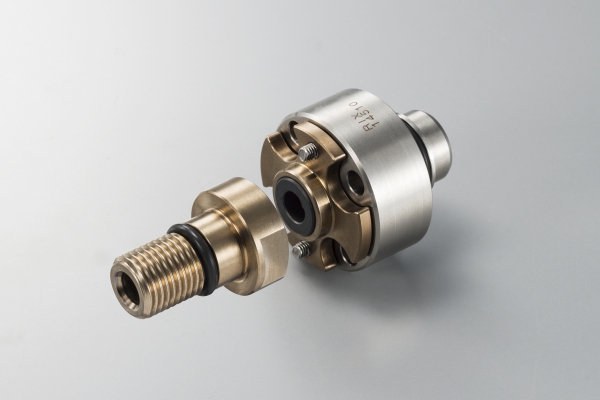

Applicable industry: Machine tools (Bearing-less type) ESX20V-L series

3 fluid type (Coolant, oil mist and dry air).
Maximum stroke (axial movement) is 8 mm.
Seal type is "Heat shrink fit" that prevent seal separation by chemical influence of coolant.

Sludge adherence reduction type (Auto Flush)

The "Auto Flush" system developed by RIX reliably reduces "leakage" which has been a major problem with rotary joints for machine tools.

This system is a new technology that dramatically improves the biggest factor that causes leaks (opening/closing operation failure caused by sludge contained in coolant).

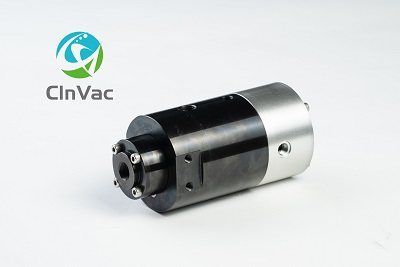

Applicable industry : Machine tools (Switching valve with ejector function) "Cln Vac"

・Suction of residual coolant inside the machining center spindle.
・Mist control inside the machining chamber.
・Reduction of air consumption during ATC.

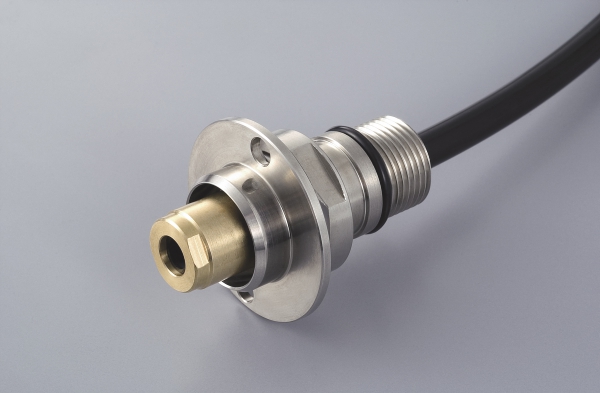

For ball screw cooling (Bearing-less type) ES50 series

One rotary joint is able to supply and discharge coolant oil.
Easy to control heat generation and saving motor energy comparing with oil seal type.

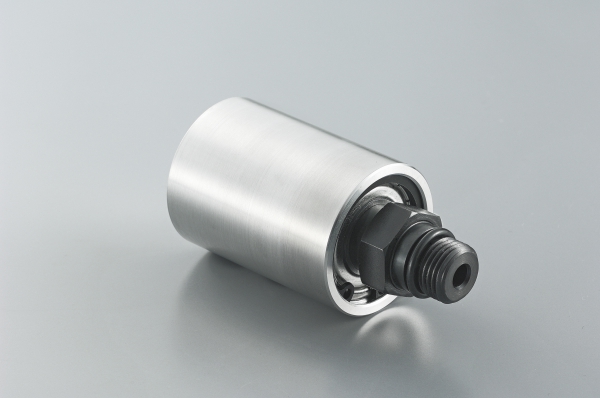

For turning machine chuck (Built-in bearing type) LA1P series (Single port)

No oil air supply needed for dry air use because grease is enclosed at mechanical seal part.

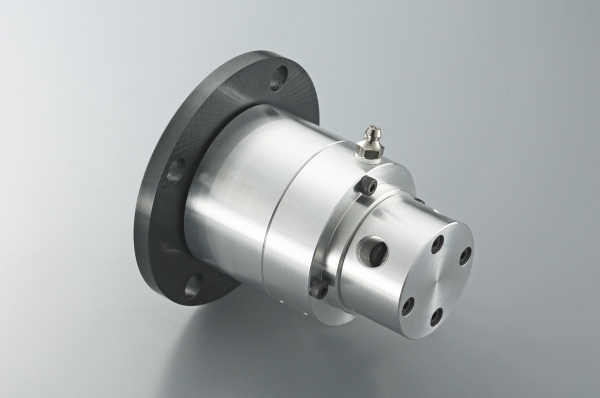

For turning machine chuck (Built-in bearing type) EES-2P03 (Double ports)

No oil air supply needed for dry air use because grease is enclosed at mechanical seal part.

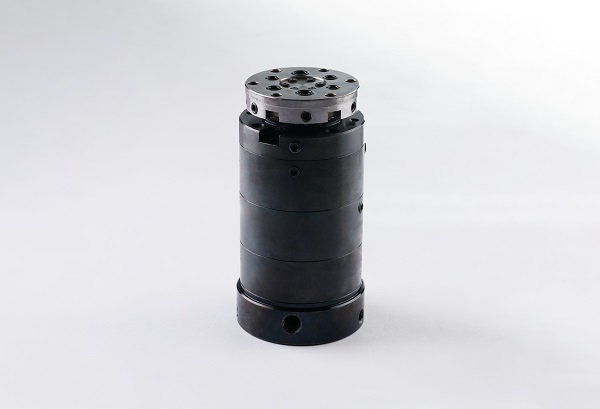

Applicable industry : Machine tools (for table cooling) Multi-port series

Suitable for various applications such as chucking, mating detection, air blow, and coolant-through.Supports high pressure and high-speed rotation.

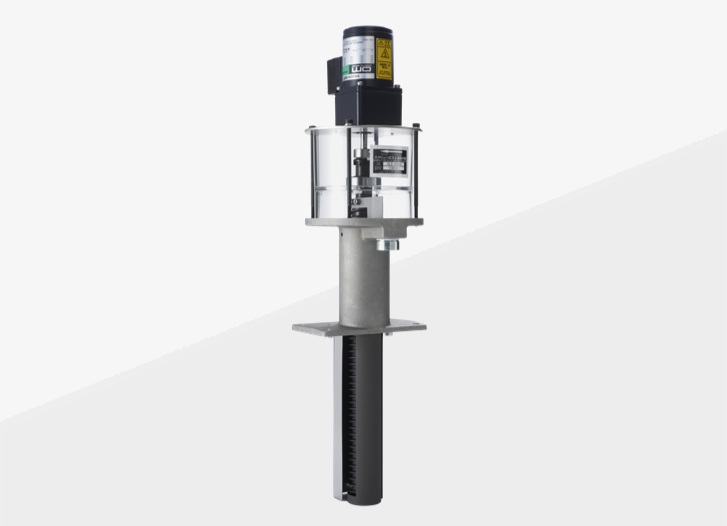

Oil Skimmers

The screw type oil skimmers do not require an oil-water separate tank. It is compact, cuts running cost, and does not need any time-consuming tank cleaning.

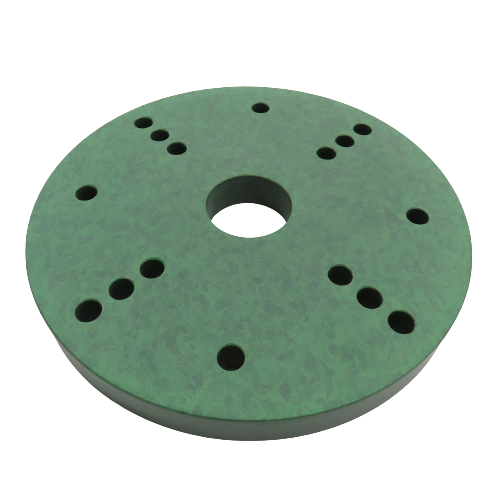

Rocky Insulator

We provide our customers with products made from phenolic resin materials and glass fibers, which are formed by heat and direct pressure integral molding using a molding machine, and which have been processed into various shapes. Thermal insulation, as well as strength, is a heat-resistant and heat-insulated plate that has been highly evaluated by customers.

FRICTTLE

A conventional lubricant forms an oil film to lubricate the sur face of metal.
FRICTTLE is a completely new lubricant because metal surface modification is also applied to lubricate the surface. FRICTTLE reduces friction overwhelmingly and remarkably prolongs the service life of metal components o wing to its incomparable lubricity.
Also, FRICTTLE can decrease noise by lowering friction-induced vibration.

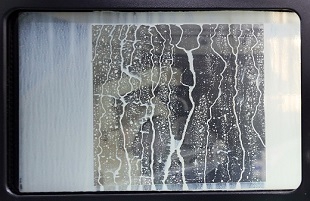

Vivid Screen

As "Vivid Screen" is featured by high performance on water & warm water repellent, by sticking this product on the visual window of machine tools & washing equipment, operators can visibly observe the running situation of machines.
