Features

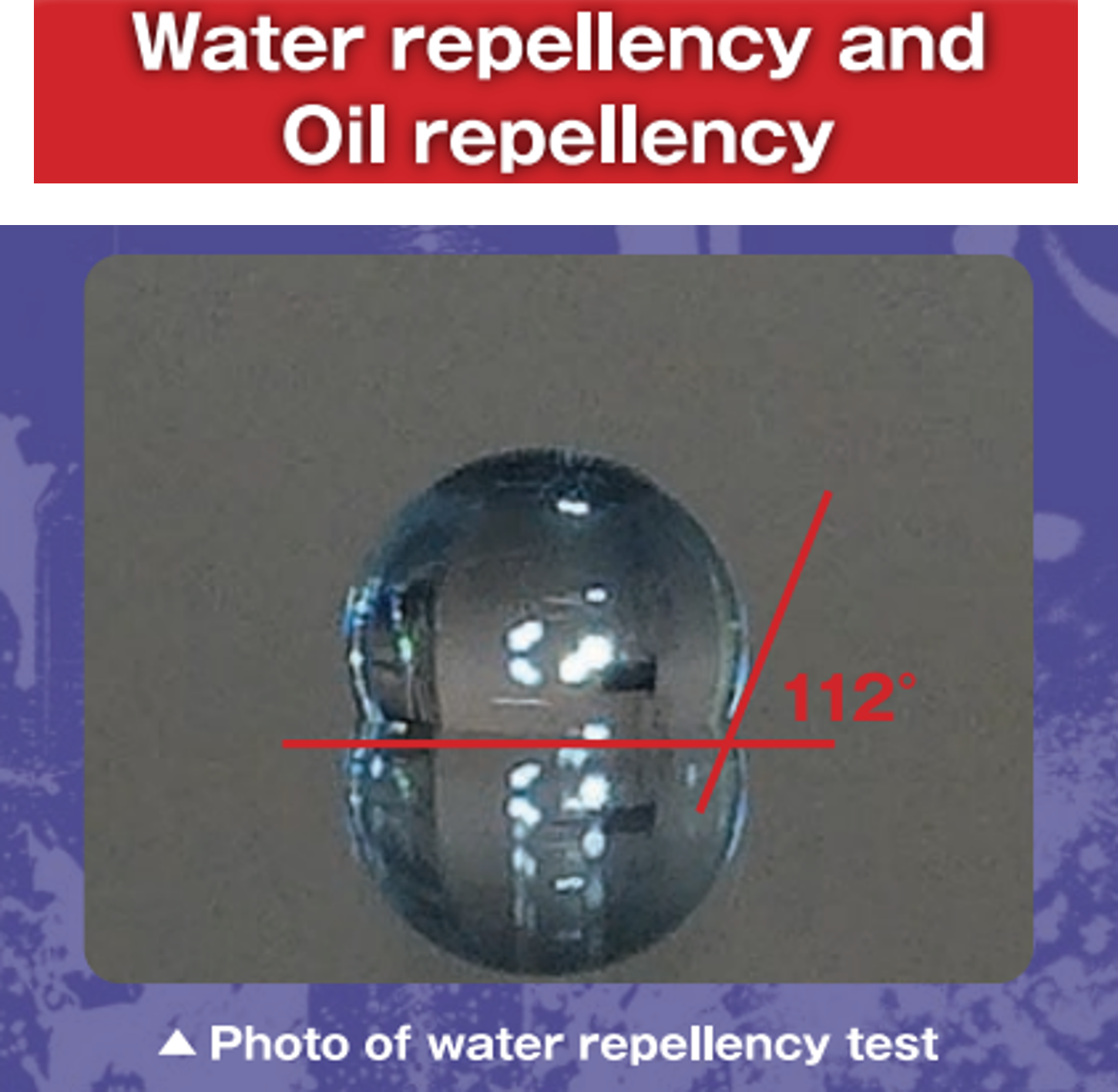

As "Fluorinated Water repellent Hard-coating Film/Vivid Screen" is featured by high performance on water & warm water repellent, by sticking this product on the visual window of machine tools & washing equipment, operators can visibly observe the running situation of machines.
-
Not only water , but also oil can be repelled by using characteristics of fluorine.
-

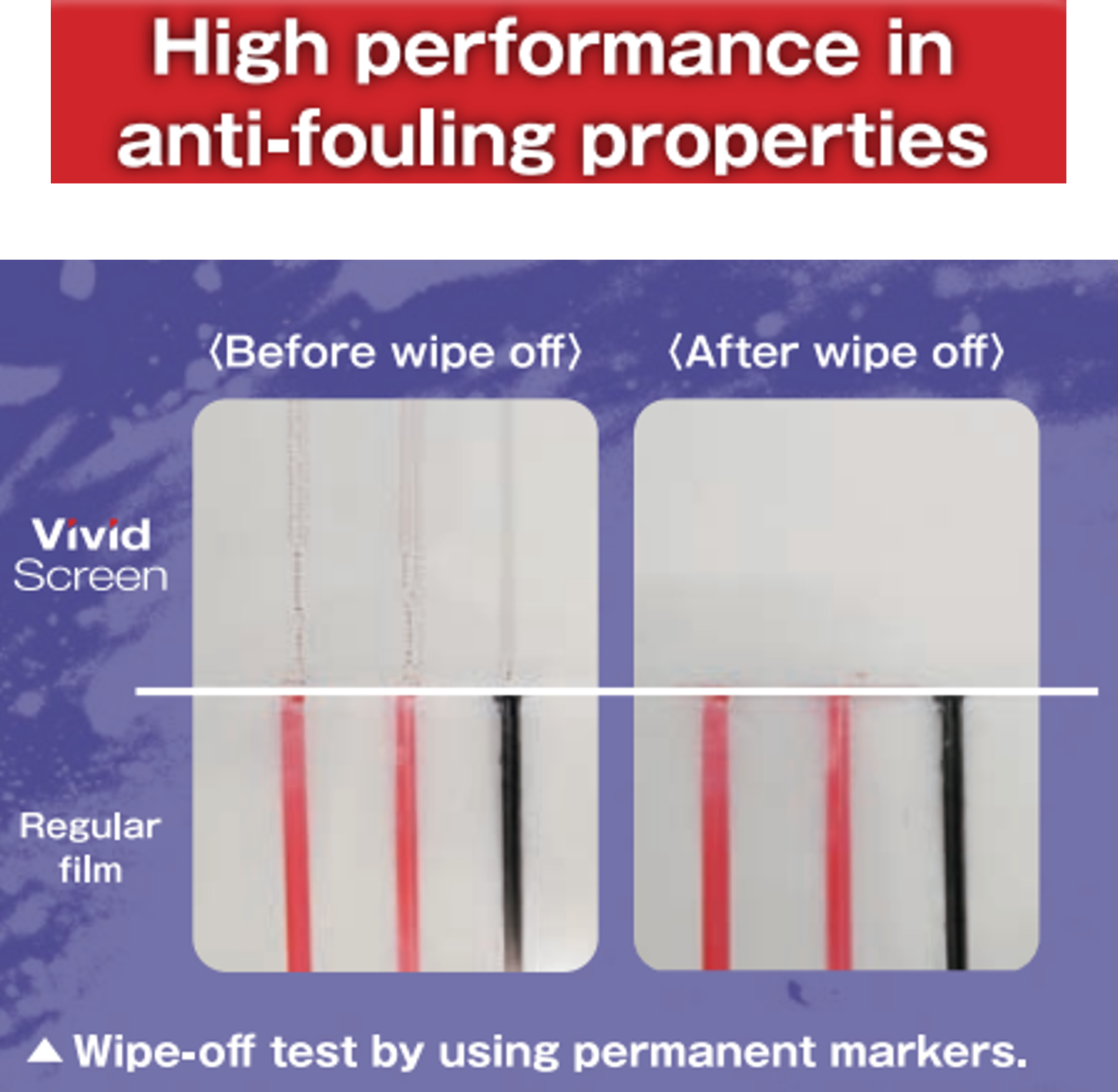

The stuck dirt can be reduced and easily cleaned up by using characteristics of fluorine.
-

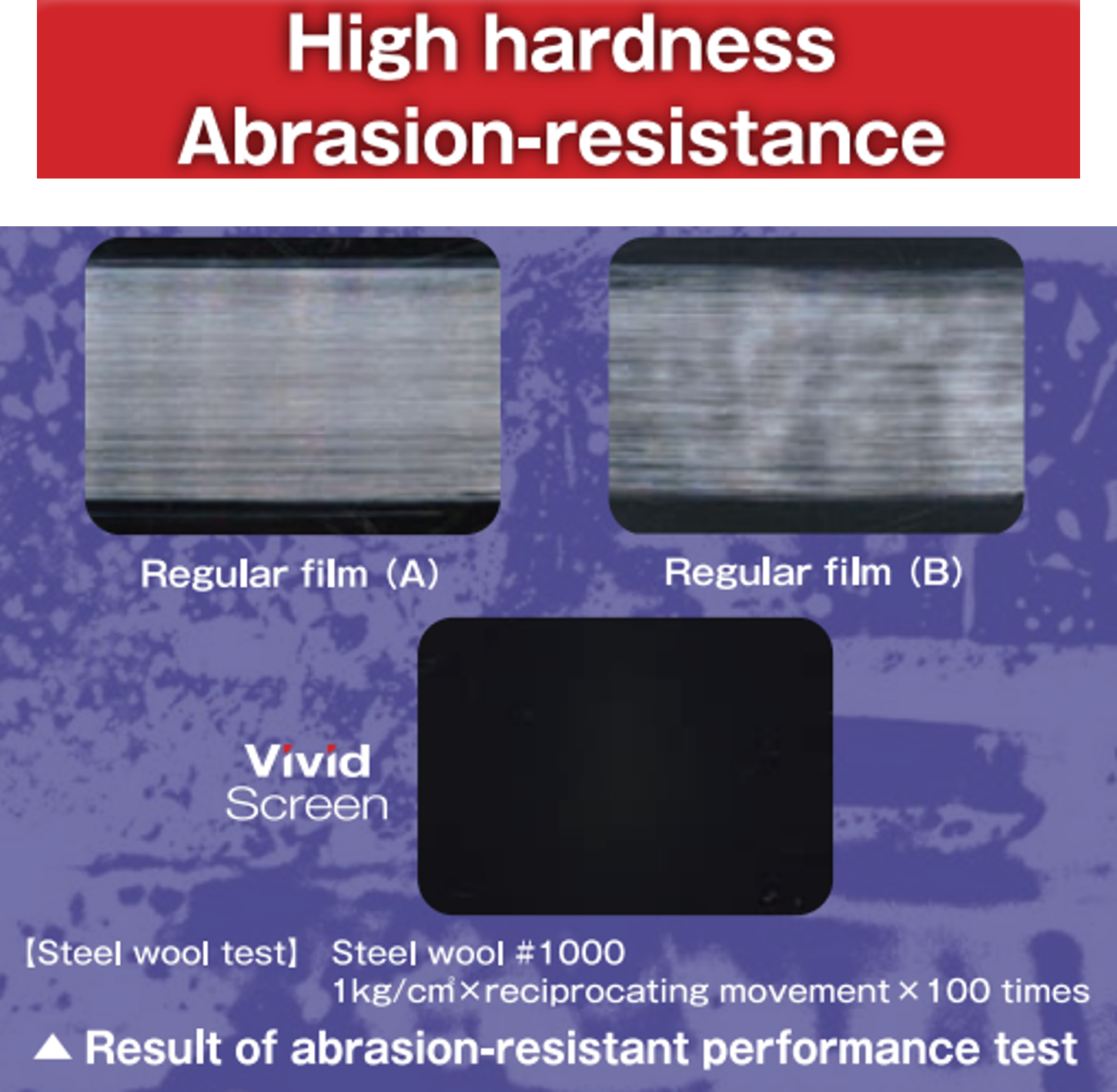

The hard coating can also reduce scratches and damage on the visual window by cutting chips.

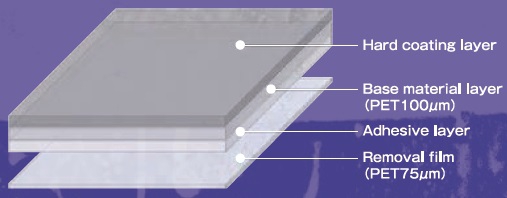

Fluorinated Water repellent Hard-coating Film/Vivid Screen Structure
Vivid Screen products
| No. | Model | Size |
| 1 | RVS-500 | 500 × 500 mm |
| 2 | RVS-1000 | 500 × 1,000 mm |
*Please contact RIX office nearby you, if need any other sizes.
Fluorinated Water repellent Hard-coating Film/Vivid Screen Example of Usage
-

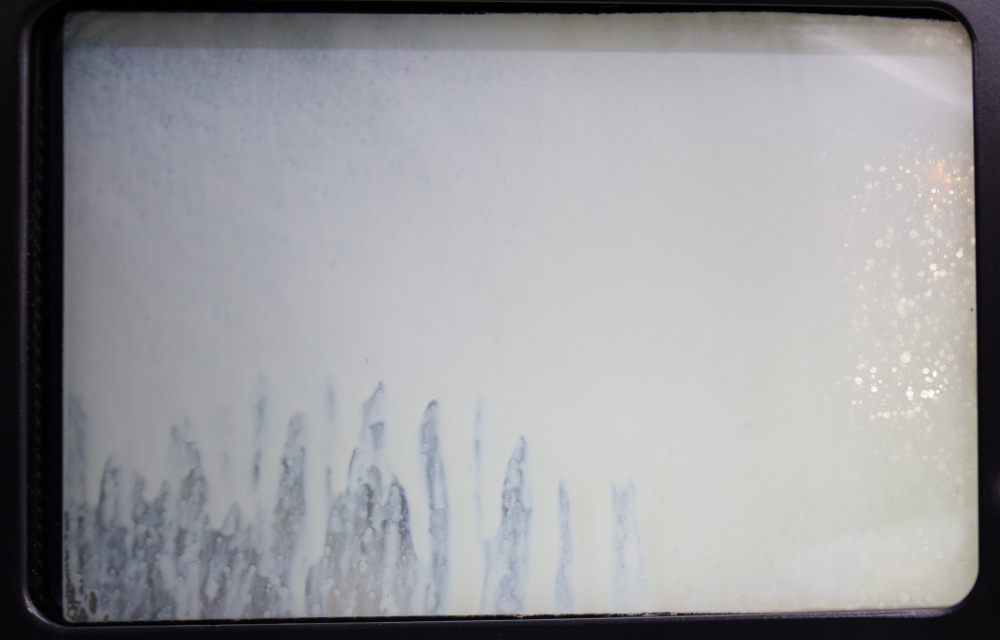

【Common Glass Window】
Bad Visual Observation -

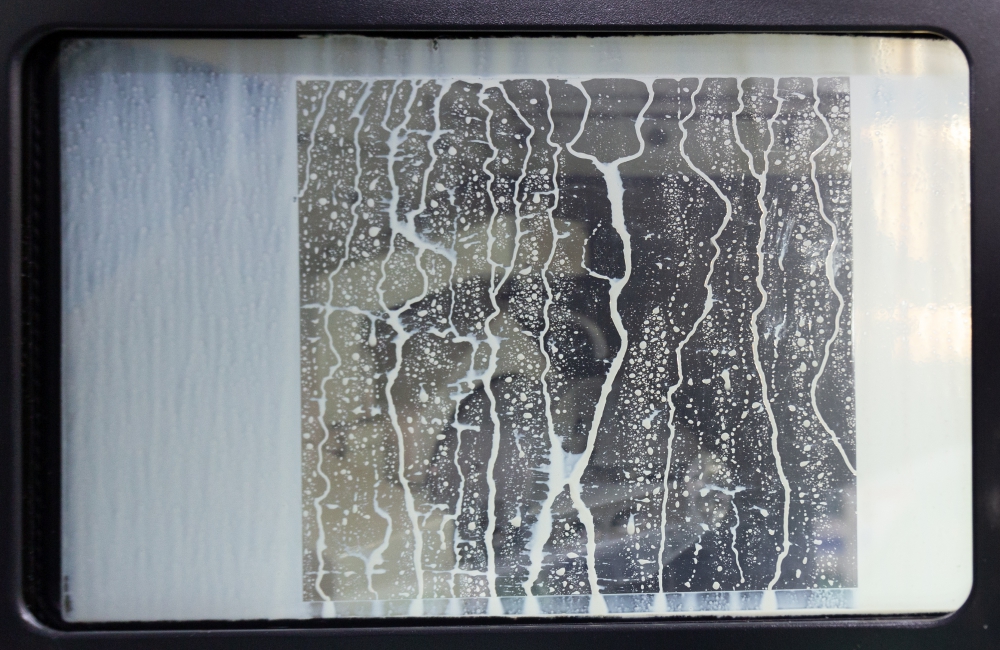

【Vivid Screen-used Glass Window】
Good Visual Observation, as the Screen repels coolant.
*Here is a link to the video for more details.
Video
＜Video＞ Experiment with the Fluorinated Water repellent Hard-coating Film/Vivid Screen
